The steps of solxx
Step 1: We load your SolXX Solar Systems onto our trucks
There are 3 solar systems loaded onto this truck bed.
Step 2: We unload your SolXX Solar System at your desired location
The jobs are designed by how many systems are needed to generate the desired power needs.
Step 3: Finalize your SolXX sytem set up
Those systems are linked together in the final solar array.
patent pending
STANDARD SPECIFICATIONS
UNIT: 10 (PV) PANELS + IQ7+ MICRO INVERTERS
SYSTEM SIZE: 4KW TO 4.5KW PRODUCING UP TO 6300 TO 7100KWH/YEAR
UNIT LENGTH: 17FT
CONSTRUCTION: 10 TO 16 GAUGE STEEL
RACKING COATING: GALVANIZED; G90
FOUNDATION: HELICAL
PILE COATING: GALVANIZED; G90
TILT ANGLES: 0°-40° OPTIONS
WIND LOADING: UP TO 115MPH
SNOW LOADING: UP TO 40PSF
MOUNTING ORIENTATION: 2-HIGH PORTRAIT
WARRANTY: 30 YEARS
sustainable solar energy
delivered right to your door
our Portable Solar system…

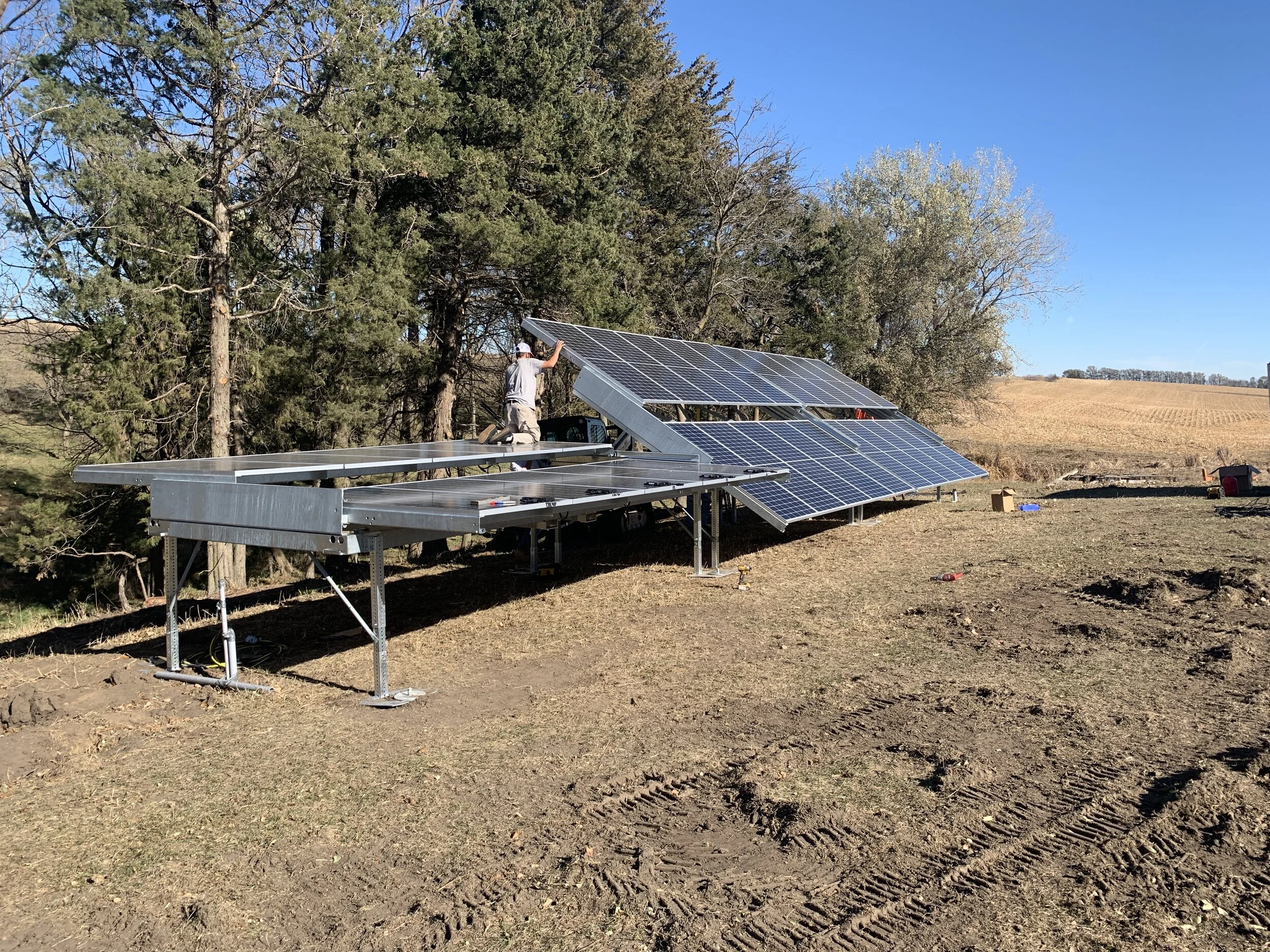

SolXX Portable Stackable Solar (PSS) Systems are the first standardized solar arrays that are completely built in the factory and shipped to the project site – ready to connect and generate solar power as a permanent, renewable energy source. The PSS modular, stackable, portable self-ballasted system is designed from a 4 kW unit to a 4.5 KW unit. Easy for multiple PSS Systems to snap together for megawatt solar projects. SolXX reduces the labor by 75% on a job site. Each PSS System comes with a choice of string or micro-inverters. Solar modules are mounted on a heavy G-90 galvanized steel frame that is professionally welded together. Each modular unit has power-adjustable legs that are easily adjusted to accommodate uneven terrain.
The C1000 10.400 is SolXX’s standard, modular array designed to easily install for any ground mount solar project. Flexible pricing and design options include a choice of modules and inverters to create solar systems that meet a wide range of power output and budget requirements. The complete, fully-assembled SolXX PSS units are delivered to the project site by equipment with forks, set into place, and connected by a SolXX Certified Partner. SolXX ground mount systems make it easy for all to install.
